HIRT offers a versatile range of precision transducers for different measurement tasks and application requirements. The probes are available with measuring ranges of ±1 mm, ±2 mm and ±5 mm, as well as with spring feed (F), vacuum lift (V), pneumatic feed (P) and pneumatic feed with air-gap sealing (L). Depending on the version, different interfaces and compatibilities are available, including TESA®, Marposs®, Mahr®, LVDT full bridges, as well as the digital IO-Link and RS485 series. For ergonomic and efficient handling, the range includes the T-Steckbar, T-Miniatur and Pig-Tail series.
HIRT Analog Transducers for reliable and precise displacement measurement. The product range includes versions for different interfaces and systems, including TESA®-, Marposs®-, and Mahr®-compatible variants, as well as half-bridge and full-bridge LVDT transducers. The standard range includes the T070, T100, T200, T300, T400 and T500 series and offers an extensive range of designs and various technical configurations to meet specific customer measurement requirements.
HIRT Transducer Pluggable for applications using a quick-connect cable, which ensures ergonomic handling and is optimised for the T070, T100, T200, T300 and T500 series. The plug-in design enables quick and easy probe replacement, thereby reducing downtime and simplifying maintenance work.
HIRT Digital Transducers with integrated signal conditioning electronics and digital communication provide a precise and reliable solution for modern measurement applications. Available with IO-Link or RS485, they can be easily integrated into automation and control systems. Digital data transmission and real-time communication enhance process reliability and enable seamless integration into existing systems and Industry 4.0 applications.

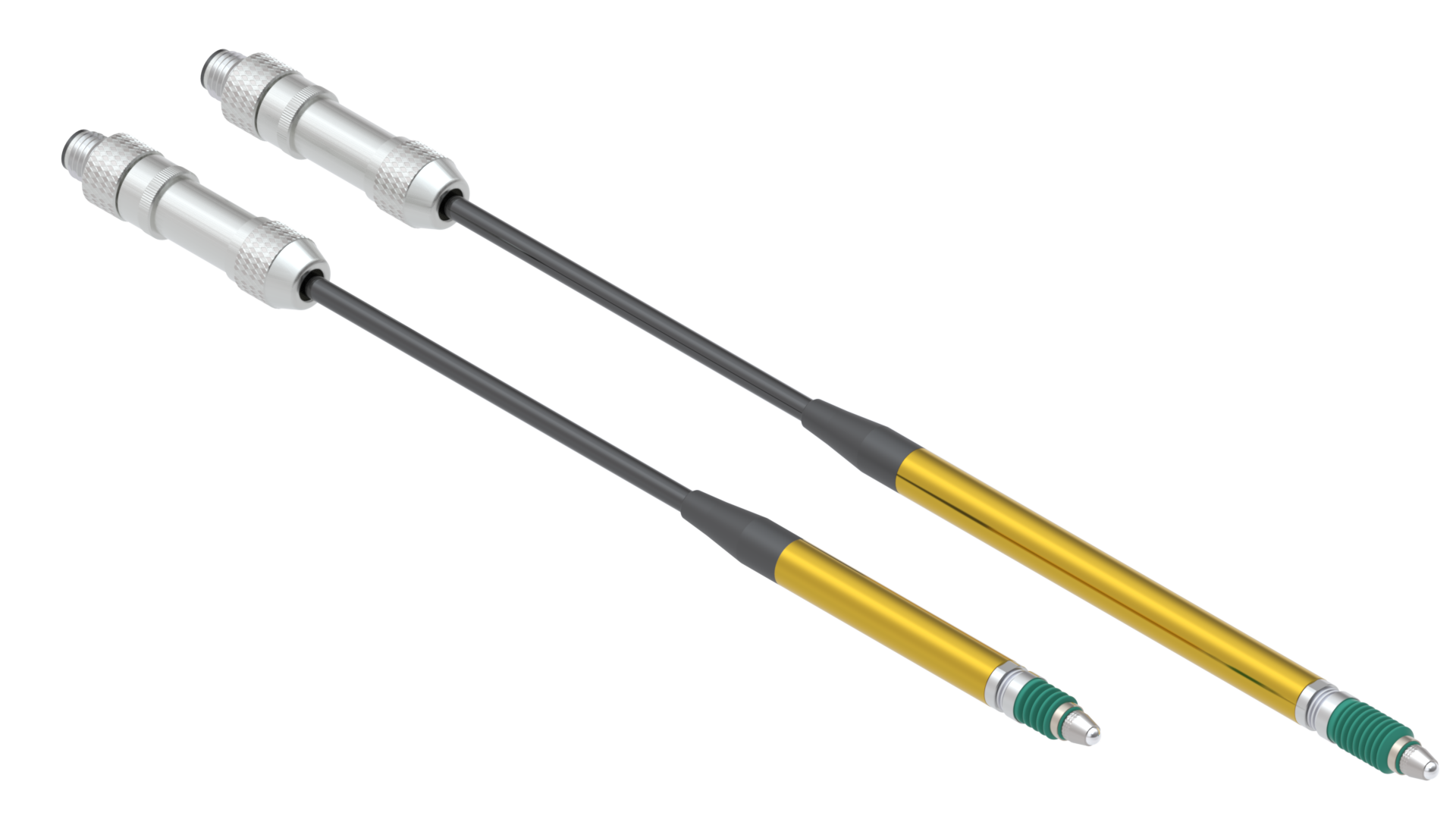

HIRT Pig-Tail Transducers are equipped with a specifically designed 200 mm long cable exit, optimized for ergonomic handling and flexible installation in restricted mounting conditions. Developed for the T070, T100, and T500 series, they provide a compact solution for reliable displacement measurement. The Pig-Tail connector simplifies cable routing, reduces stress on the short connection cable, and enables easy and convenient transducer replacement without affecting the existing wiring, ensuring seamless integration into measurement systems.
HIRT Miniature Transducers feature an ultra-compact design for high-precision measuring applications where installation space is extremely limited. The product range originates from the former Machsize and Nairda product families and includes the 10P0, 10P1, and 1P0 series. These transducers are characterized by high measurement accuracy, excellent repeatability, and a robust design for demanding industrial applications.
HIRT bore measuring transducers from the BMT200 and BMT500 series offer high-precision measurement solutions for bores and limited installation space. installation spaces. The repeatability of 0.050 µm and a linearity deviation of max. 1% of the measuring range ensure reliable measurement results. The compact design allows integration into bore gauges, measuring fixtures and automated inspection systems for internal diameter as well as form and position tolerances.
HIRT DC-Transducer as a complete measurement system, consisting of a HIRT standard transducer and signal conditioning electronics in a cable box, with an optional configurable DC output signal for flexible adaptation to measurement requirements.
HIRT block gauge transducers enable precise measurements in hard-to-reach areas and are ideal for applications with restricted access to measurement points, where the use of axial probes is not possible or only possible to a limited extent. In combination with tip holders from the T800 series, tips and tip holder extensions can be flexibly mounted and adapted to different measurement directions and requirements. The HIRT linear ball bearing used, enables precise and free-of-play linear motion and ensures high repeatability and reliable measurement results.
